Short Description

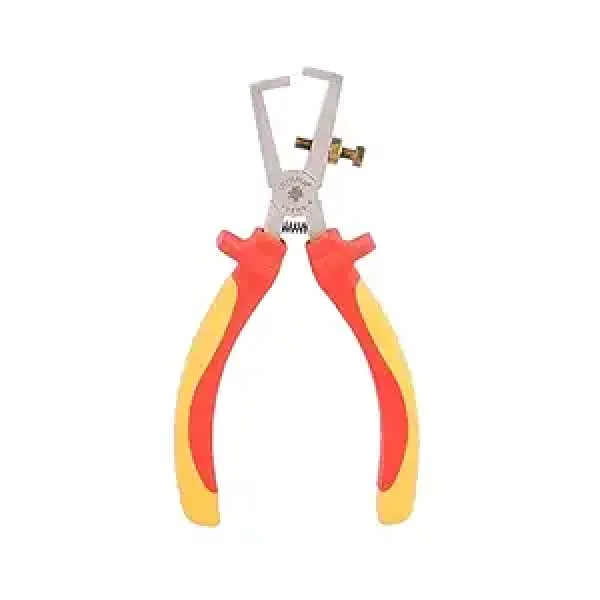

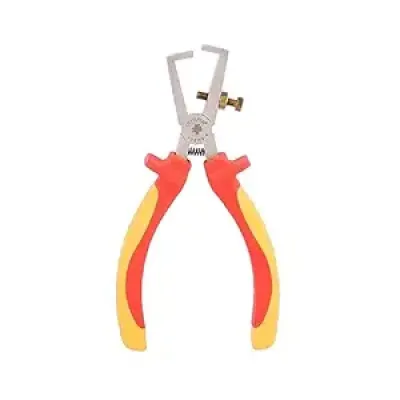

The VDE Wire Stripping Plier VDEWS 6 is a specialized safety tool designed for the fast, precise removal of plastic or rubber insulation from single, multiple, and fine-stranded conductors, featuring certified 1000V insulation for live-wire protection.

Long Description

Forged from high-performance 60 Cr-V (Chrome Vanadium) steel, the VDEWS 6 is engineered to provide a clean strip without damaging the underlying wire core. It features a precision-machined V-shaped cutting jaw that is easily adjustable via a knurled brass locking screw, allowing the user to set the exact diameter for the wire being processed (up to 5 mm or 10 mm² cross-section). Each unit is individually tested to meet rigorous VDE and GS safety standards, ensuring reliable protection against electrical shocks up to 1000V AC.

The tool is equipped with a high-tension opening spring that automatically resets the jaws after each strip, significantly improving efficiency during repetitive wiring tasks. The specialized dual-component insulated handles include integrated slip guards to ensure a safe barrier between the operator's hand and the non-insulated metal head. Finished with a professional anti-corrosion coating, this tool is an essential asset for any professional electrical installation kit.

Why Choose This Product?

Choose the VDEWS 6 for its combination of safety and mechanical precision. Unlike standard cutters, the adjustable locking mechanism ensures you only cut the insulation and never the conductor, preserving the integrity of the electrical connection. Its high-strength Chrome Vanadium construction and certified 1000V protection make it the definitive choice for electricians who require a durable, specialized tool for live-circuit preparation.

Special Technical Specifications

• Material: 60 Cr-V (Chrome Vanadium) steel, induction-hardened
• Length: 160 mm (6 inches)
• Weight: 185 g
• Insulation Rating: 1000V AC / 1500V DC (VDE/GS Certified)
• Stripping Capacity: Up to 5.0 mm diameter / 10 mm² cross-section
• Adjustment: Brass knurled screw with lock nut

Key Features

• V-shaped stripping notch for precise insulation removal on various wire gauges
• Adjustable locking screw to prevent accidental damage to wire strands
• VDE/GS certified safety handles for protection on live circuits up to 1000V
• Integrated opening spring for effortless, repetitive operation

Applications

• Electrical Panel Building – stripping multiple conductors for terminal connections
• Residential Wiring – preparing lighting and power circuit wires for installation
• Industrial Maintenance – safe servicing of control wiring in live machinery
• Telecommunications – stripping fine-stranded data and signal cables

Maintenance Instructions

• Inspect the handle insulation meticulously before every use; do not use if damaged
• Ensure the adjustment screw is tightened to the correct gauge to avoid conductor nicks
• Apply a small drop of light machine oil to the pivot and spring periodically for smooth action
• Store in a dry tool pouch to maintain the dielectric properties of the insulated handles
