Short Description

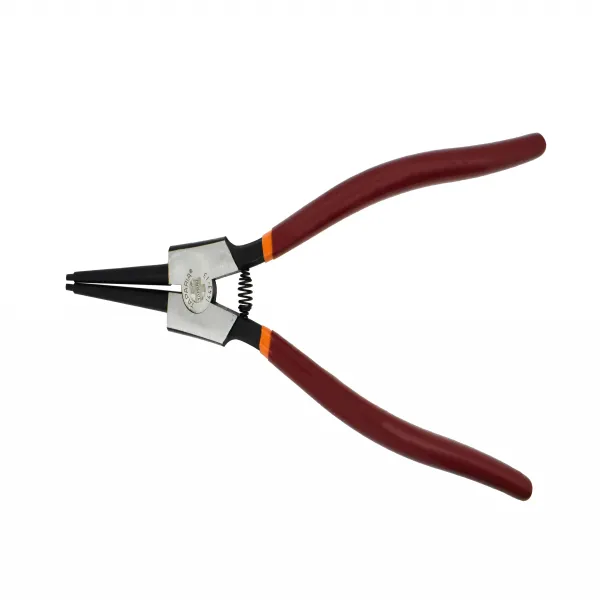

The Circlip Pliers 1443-13 (External Straight Nose) is a massive, industrial-grade tool designed for the high-torque installation and removal of extra-large external retaining rings on heavy-duty shafts and axles.

Long Description

Forged from premium 5Cr13 spring steel, the 1443-13 model is built to handle the extreme tension required for expanding large-scale industrial circlips. At an extended 330 mm, this tool provides maximum mechanical advantage, allowing operators to manage high-tension fasteners with significantly reduced effort. It features a heavy-duty return spring that automatically opens the jaws when the handles are squeezed, ensuring a controlled and stable expansion of the retaining ring.

The straight-nose design is equipped with precision-ground 3.2-mm tips that are scientifically heat-treated to maintain perfect alignment and prevent deformation under heavy loads. Finished with a professional black nitride coating for superior rust resistance and paired with ergonomic anti-slip rubberized handles, these pliers offer the leverage and security needed for the most demanding industrial environments.

Why Choose This Product?

Choose the 1443-13 for its unmatched 330-mm reach and industrial-strength performance. It is specifically designed for professionals who manage external snap rings up to 165 mm in diameter, where standard tools lack the necessary leverage and tip stability. Its hardened, corrosion-resistant frame and precision-machined tips ensure the circlip remains locked on the tool during expansion, preventing accidental slips and improving workplace safety.

Special Technical Specifications

• Material: 5Cr13 spring steel, 30H tempered, precision-ground tips
• Length: 330 mm
• Weight: 480 g
• Tip Diameter: 3.2 mm
• Circlip Capacity: 85 mm to 165 mm (External)
• Coating: Black nitride, anti-wear, anti-corrosion

Key Features

• Extended 330-mm straight-nose design for maximum leverage on large shafts
• High-grade spring steel construction for long-lasting structural integrity
• Precision-machined 3.2-mm tips for a secure, non-slip grip during expansion
• Ergonomic, rubberized handle for improved comfort and high-torque control

Applications

• Heavy industrial machinery – installing large retaining rings on turbine and motor shafts
• Marine and Shipbuilding – managing external snap rings on large-scale propeller shafts
• Mining and Heavy Construction – servicing external clips on massive hydraulic components
• Railway and Locomotive repair – precise placement of fasteners on heavy axle assemblies

Maintenance Instructions

• Apply a thin layer of light machine oil to the pivot and tips after each use to prevent oxidation
• Periodically check the heavy-duty return spring to ensure smooth and consistent operation
• Store in a dry environment to maintain the integrity of the professional black nitride coating
