Short Description

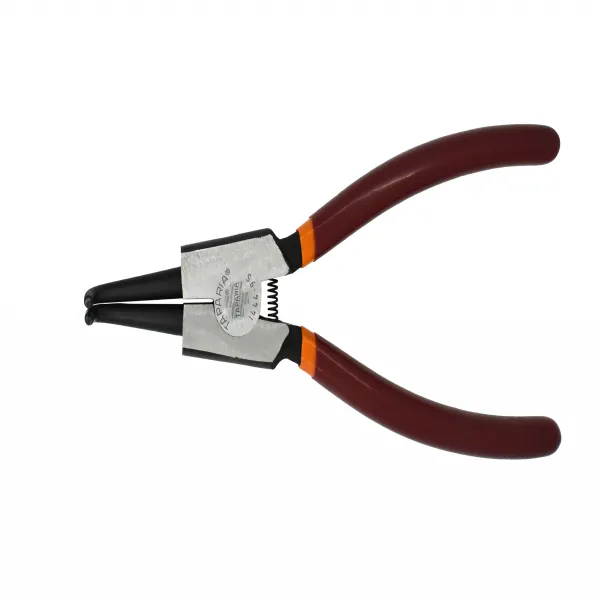

The Circlip Plier 1444-9S (Bent Nose) is a heavy-duty, long-reach precision tool featuring a 90-degree angled tip, specifically designed for the effortless installation and removal of large external circlips on shafts in obstructed or deep-seated industrial environments.

Long Description

Forged from premium 5Cr13 spring steel, the 1444-9S model is built to provide maximum structural strength and precise tip alignment under heavy tension. The 90-degree bent nose design, combined with its extended 215-mm profile, allows users to expand large external retaining rings around obstacles and work on shafts where straight-nose pliers cannot provide the necessary clearance or line of sight.

The tool is finished with a specialized black nitride coating that offers superior resistance to rust and surface wear in demanding industrial settings. Featuring a high-tension return spring and an ergonomic anti-slip rubberized handle, these pliers ensure that large external circlips remain securely on the 2.3-mm precision-ground tips during expansion, making it a reliable choice for heavy automotive, agricultural, and machinery assembly.

Why Choose This Product?

Choose the 1444-9S for its specialized angled reach and industrial-grade leverage. It combines a hardened, corrosion-resistant frame with precisely machined tips that prevent heavy external circlips from slipping or springing away under tension. It is the ideal solution for technicians working on large-scale mechanical components and commercial vehicles who require a reliable tool for shaft-mounted snap rings in awkward orientations.

Special Technical Specifications

• Material: 5Cr13 spring steel, 30H tempered, precision-ground tips
• Length: 215 mm
• Weight: 320 g
• Tip Angle: 90-degree bent nose
• Tip Diameter: 2.3 mm
• Circlip Capacity: 40 mm to 100 mm (External)
• Coating: Black nitride, anti-wear, anti-corrosion

Key Features

• 90-degree angled nose for superior accessibility to obstructed external shafts
• Extended 215-mm design for high-leverage work in deep industrial housings
• Precision-machined 2.3-mm tips for a secure, non-slip grip during expansion
• Ergonomic, rubberized handle for improved comfort and maximum control

Applications

• Heavy automotive maintenance – servicing external snap rings on truck drive shafts and CV joints
• Industrial machinery – managing large retaining rings on recessed rotating shafts
• Agricultural equipment repair – installing clips on tractor crankshafts and heavy gear assemblies
• Construction machinery – precise placement of large external fasteners in obstructed housings

Maintenance Instructions

• Apply a thin layer of light machine oil to the pivot and tips after use to prevent rust
• Periodically check the return spring mechanism for smooth and consistent operation
• Store in a dry environment to maintain the integrity of the anti-corrosion coating
