Short Description

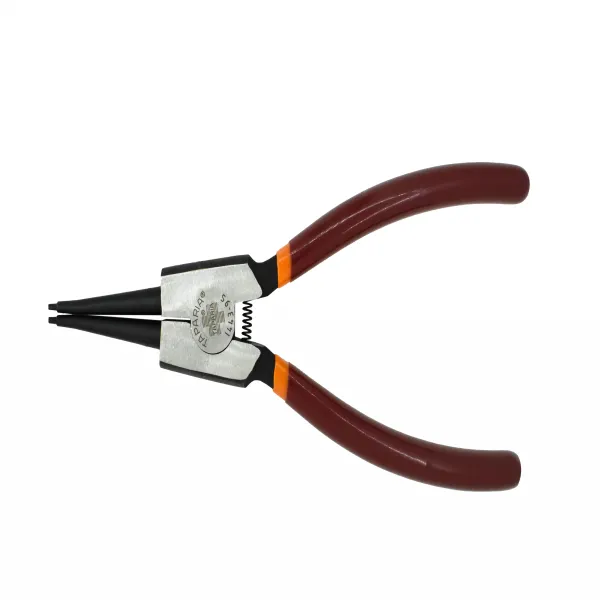

The Circlip Plier 1443-9S (External Straight Nose) is a heavy-duty, long-reach tool designed for the precision installation and removal of large external retaining rings on industrial shafts and axles.

Long Description

Forged from premium 5Cr13 spring steel, the 1443-9S model is engineered to provide maximum structural integrity and precise tip alignment under heavy tension. At an extended 230 mm, this tool offers superior mechanical advantage, allowing users to expand large external circlips with minimal effort. This model features a high-tension return spring that automatically opens the jaws when the handles are squeezed, ensuring a controlled and stable expansion of the fastener.

The straight-nose design features precision-ground 2.3-mm tips that ensure a secure, slip-free interface with the circlip. Finished with a professional black nitride coating for superior rust resistance and paired with an ergonomic anti-slip rubberized handle, these pliers provide the leverage and comfort required for heavy-duty industrial maintenance and automotive assembly.

Why Choose This Product?

Choose the 1443-9S for its industrial-grade reach and high-torque performance. Its hardened, corrosion-resistant frame ensures long-term reliability in harsh environments, while the precisely machined tips prevent large external circlips from springing away under tension. It is the perfect tool for technicians working on heavy machinery, commercial vehicles, and agricultural equipment who require a reliable tool for large shaft-mounted fasteners.

Special Technical Specifications

• Material: 5Cr13 spring steel, 30H tempered, precision-ground tips
• Length: 230 mm
• Weight: 305 g
• Tip Diameter: 2.3 mm
• Circlip Capacity: 40 mm to 100 mm (External)
• Coating: Black nitride, anti-wear, anti-corrosion

Key Features

• Extended straight-nose design for direct access to large shaft-mounted rings
• High-grade spring steel construction for maximum durability and strength
• Precision-machined 2.3-mm tips for a secure, non-slip grip during expansion
• Ergonomic, rubberized handle for improved leverage and precision control

Applications

• Commercial vehicle maintenance – managing large external snap rings on drive shafts
• Industrial machinery – installing retaining rings on heavy-duty rotating shafts
• Agricultural equipment – servicing external clips on tractor axles and gearboxes
• Construction machinery – precise placement of large external fasteners in heavy assemblies

Maintenance Instructions

• Apply a thin layer of light machine oil to the pivot and tips after use to prevent rust
• Periodically check the return spring mechanism for smooth and consistent operation
• Store in a dry environment to maintain the integrity of the anti-corrosion coating
